Revolved Section
What is a twisted cut?
Drop a cutting plane perpendicular to the axis of the object and rotate the plane 90 degrees around a center line and at right angles to the axis.
So what is a distorted image?

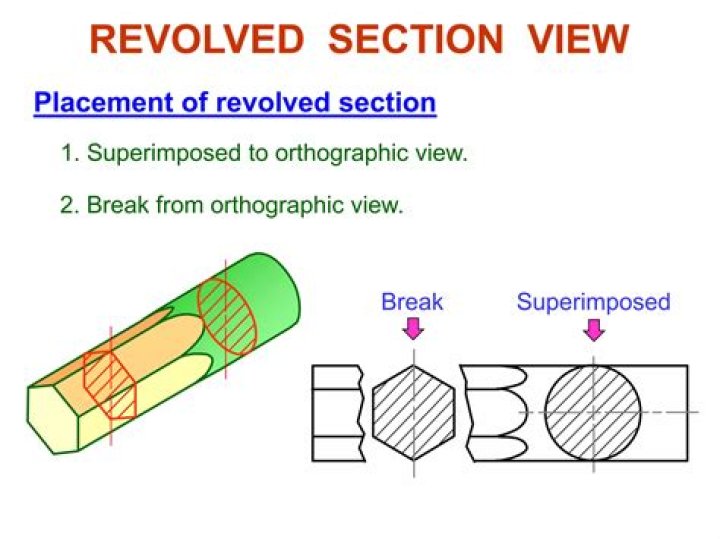

A rotated view is a cross section of an existing cut rotated 90 degrees around a projection of the cut plane. You can use a section created in the 3D model as a section plane or create a section when placing the view.
Do you know the different types of cross sections?
You can draw different types of cross sections. Some of the most common are: full sections, half sections, broken sections, twisted or twisted sections, erased sections, displaced sections, and assembly sections.
In addition to the above, what is a cross section?
∎ A section view is a view used in another drawing. show a hidden area or part of an object. cut or delete one of these objects.
What’s the difference between an add-on and an average view?
If I remember correctly, help views are just an alternative to normal views, such as close-ups of exploded components. Sections are cut as if part of the object has been removed to reveal something behind without the confusion of using hidden lines.
What section is moved?
What is an offset section?
An offset section is created by bending the cutting plane to show features that are not in the same plane.
What is additional vision?
The auxiliary view is an orthographic representation that has been registered so that the viewing directions are not parallel to the main projection planes (front, horizontal or profile). There are an infinite number of possible auxiliary views of a particular object.
What is a half section?
Half cuts. Half Section is a view of an object showing half of the section view as shown in the drawing below. In the section drawing, diagonal lines are used to indicate the theoretically sectioned area. These lines are called intersection lines or intersection points.
How do I break a section in Solidworks?
Click Insert> Drawing View> Section Area. Use the Auto Render Spline tool to draw a closed boundary around the area where you want to create a section view. In the Section View dialog box, select options and click OK.
What is a conventional break and when is it used often?
(V / F) A conventional rest can be used when you need to cut out a long object of constant shape. (V / F) A deleted part is deleted by name only. It is used when rotating a part of a part by 90 degrees. (V / F) Hidden lines in several deleted sections have been omitted for the sake of clarity.
What is the view from the top?
A plan view is an orthographic projection of a three-dimensional object from the position of a horizontal plane through which the object passes. In other words, a plane is a cut seen from above.
When should an average view be used?
A section or section examines an object. Sections serve to illustrate the internal structure of a room, which cannot be clearly described with hidden lines from the outside. If you take an imaginary cross section through the object and remove some of it, the inside of the features becomes more visible.
What is a side view?
Height. A facade is a side view of a building, a flat representation of a facade. Geometrically, a height is a horizontal orthogonal projection of a building onto a vertical plane, where the vertical plane is usually parallel to one side of the building.
What is the difference between a half cut and a full cut?
2 What is the difference between a half part and a whole part?
A full section is the full section. Half is half of the section. It is used when the object is symmetrical in internal and external details.
What is the cross section for?
Cross-sectional images are identified by thin, thin, parallel lines called intersection points or intersection lines, which are often skewed 45 degrees in view. The purpose of a section is to allow readers to fully view the drawn object.
What is an average subscription?
A section plane is a vertical part that shows the interior features of your property. It looks like a floor plan, but shows the interior of the property. The drawing plane is usually combined with other plans for a measured construction drawing. Think floor plans, heights, etc.
