Dryer High Limit Thermostat
Can you bypass a thermostat on a dryer?
The idea would be to bypass the thermostat, heater or thermal switch one at a time and see if the dryer heats up. When it's hot, the problem is the thermostat. In the unheated state, the thermal shutdown and the upper limit can be controlled in the same way. The timer, motor switch and element cannot be controlled in this way.
So we can also ask ourselves, can we bypass a thermal break on a tumble dryer?
Bypassing a Dryer Fuse If you don't have access to a multimeter or ohmmeter, you can bypass the thermal fuse. Using a dryer with a thermal bypass fuse is both unnecessary and dangerous, so a bypass should only be used for as long as it takes to resolve a potential problem.
Secondly, how much does it cost to replace a thermal fuse in a tumble dryer?
Drying Element Costs Heating element replacement costs an average of $ 30- $ 200, depending on the part needed.
So we can also ask ourselves, how do I know if my thermal fuse has blown?
Touch the left multimeter lead to the left side of the thermal fuse and touch the right multimeter lead to the right side of the fuse. Keep an eye on the multimeter needle. A needle that does not move indicates a blown thermal fuse. If so, don't worry: heat exchange is an easy task.
Does the dryer have a reset button?
Many dryers are equipped with a reset button on the control panel. If the engine does not run, let the dryer cool down for about ten minutes. Then press the reset button. If there are no problems with the engine, switches or electrical system, the dryer must be restarted.

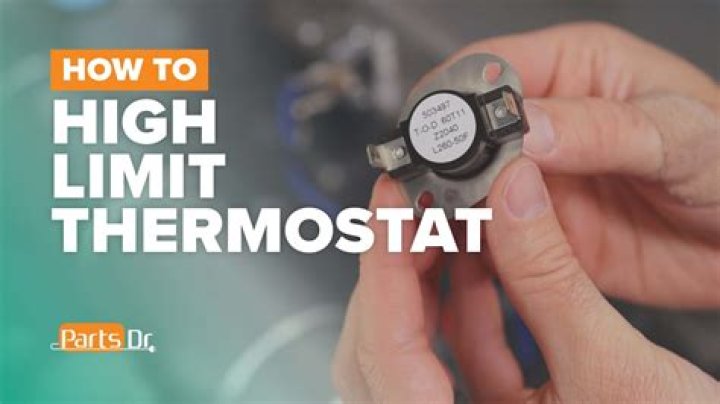

What is an upper limit thermostat for in a tumble dryer?
An upper limit thermostat is a switch that activates when the temperature changes. This high limit thermostat acts as a safety mechanism to prevent the dryer from overheating. When the dryer temperature reaches 221 degrees Fahrenheit, this part cuts off power to the heating element until it drops to 80 degrees Fahrenheit.
How do you reset the thermal fuse?
Resetting a thermal fuse Disconnect the dryer from the mains. Fold the faceplate towards you so that you can look around the room. Point a flashlight at the flat, channel-shaped part to locate the blown thermal fuse.
Why doesn't the dryer have a heater?
With an electric dryer, heat often doesn't mean that the power switch or fuse that controls the power has been blown, reset, or replaced. Remember that a dryer can have two switches or fuses. The engine will run when one is running, but the heating element needs both.
Why doesn't the dryer heat up?
Another possible reason a tumble dryer does not heat up can be traced to a faulty thermal fuse. Once the thermal fuse has blown, it can no longer be used. If your dryer has a fuse, replace it. Open the dryer and find the thermal fuse so you can test it.
Does the dryer thermostat need to have continuity?
At room temperature the thermostat should provide zero crossing, so touch one sensor on one terminal and the other sensor on the other terminal and check the test display. It should be bad. If it shows indefinitely, the thermostat is faulty.
What does a tumble dryer thermostat look like?
Dryer thermostats are usually oval and about one and a half inches long. There should also be two wires going to each thermostat. Mark these wires before removing them so you can reconnect them later. At room temperature, the thermostat test should return a zero reading.
How much does a dryer thermostat cost?
Cost and Repair Considerations As of 2012, hiring a mechanic to install a new thermostat costs around $ 177, while you can buy thermostats for under $ 60 to do the repairs yourself. A new device can cost anywhere from $ 300 to $ 1,400.
What causes the dryer to fail?
Blown thermal fuse A frayed cable can cause the thermostat to malfunction. A tumble dryer will ■■■■ a thermal fuse if it is about to overheat. Whenever the thermal fuse blows, it can disturb and even worsen the operation of the thermostat.
How many thermostats does a dryer have?
Modern dryers usually have more than one thermostat - a cycle thermostat that turns the heating element on and off to maintain the temperature and an upper limit or thermal thermostat that cuts power to the heating element when the dryer overheats.
